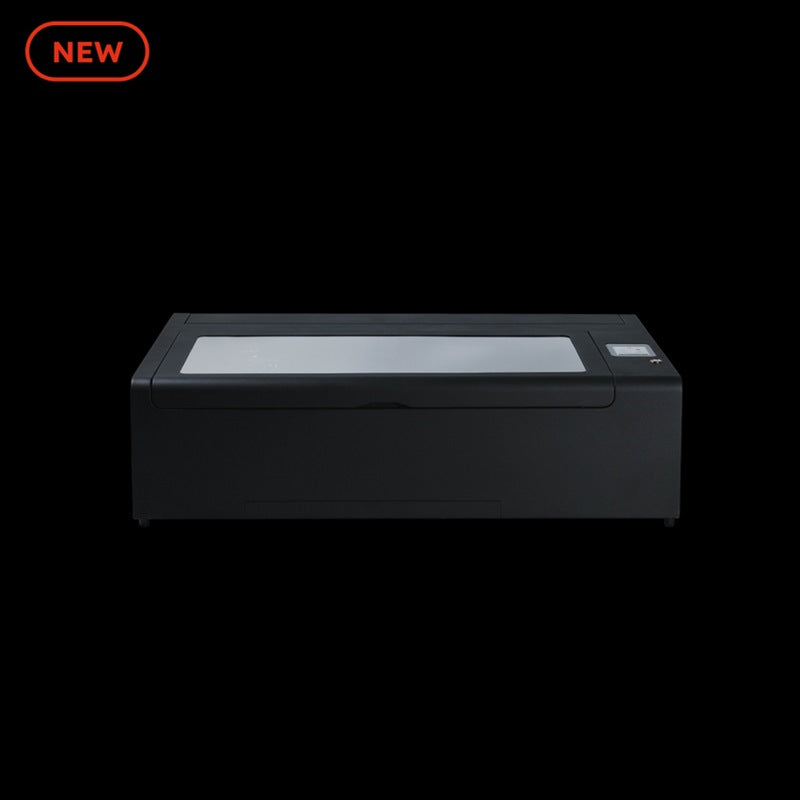

FLUX HEXA RF Metal Laser Tube Engraver
FLUX's best metal laser tube ever, HEXA RF, offers multiple wattage options including 30W, 60W, and 80W.
Compared to traditional glass tubes, metal lasers provide more detailed engraving, longer lifespan, and maintenance-free characteristics, while demonstrating excellent stability in mass production efficiency, opening up new possibilities for professional creation and large-scale production.
Stable Cutting Performance
2,000 mm/s Ultra-High Speed Engraving

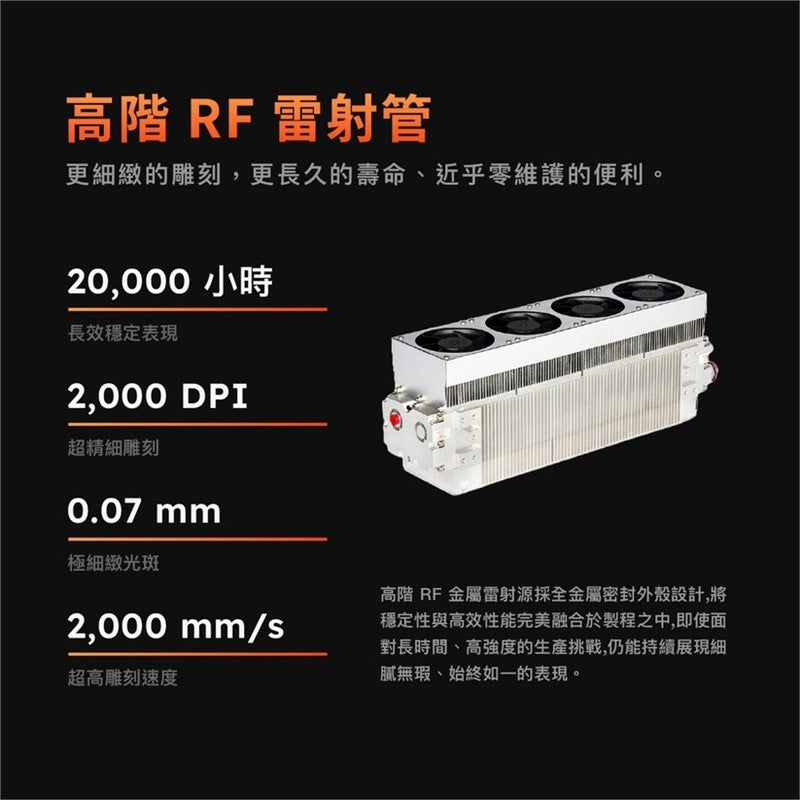

HEXA RF is equipped with a metal RF laser tube, achieving engraving speeds of up to 2,000 mm/s.
Faster operating efficiency brings a smooth and stable creative experience, balancing speed and precision whether for single pieces or batch processing.
2000 DPI, Incredibly Detailed
Combining 2,000 DPI ultra-high resolution with a metal RF laser tube, HEXA RF engraves every detail with clarity and sharpness.
Whether it's tiny text, delicate patterns, or complex reliefs, it handles everything perfectly.
Extra-Large Working Area
The HEXA RF's extra-large working area of 730 x 410 mm allows you to process over 50 standard business cards at once, or work on an entire large wooden board simultaneously.
Whether for small batch customization or large-scale projects, HEXA RF can complete it all in one go.

Contact us to learn more about FLUX!
Product Specifications
| Item | Specification |
|---|---|
| Product Size | 1110 × 811 × 317 mm |
| Laser Power | 30W / 60W / 80W RF Metal Laser Tube |
| Max Engraving Speed | 1G: 2000 mm/s, 3G: 1200 mm/s |
| Engraving Resolution | 2000 DPI |
| Laser Tube Lifetime | 20,000 HR |
| Laser Spot Size | 0.07 mm |
| Screen | 5-inch Touchscreen |
| Camera Resolution | 8 MP |
| Focusing Method | Built-in Autofocus |
| Safety Certification | Class I (CE, FCC, FDA…) |
| Connectivity | WiFi / USB / Ethernet (by USB Dongle) |
| Operating System | Windows / macOS / Linux / ChromeOS / Web (iOS, iPadOS, Android) |
| Operating Software | Beam Studio |
| Item | Wide-area Engraving Inlet | Extension Base Kit |
|---|---|---|
| Max Material Width | 500 mm | 525 mm |
| Max Material Thickness | 14 mm | 50 mm |
| Engravable Width | 500 mm | 480 mm |
| Engravable Length | 500 mm | 1610 mm |
| Engravable Length Under Machine (with Extension Base Kit) | 1035 mm | 2185 mm (Auto-feed Extension Pack) |
| Max Clampable Thickness | 20 mm | — |
| Item | Engravable Diameter |
|---|---|
| Cylinder Engravable Diameter | 1 – 145 mm |
| Ring Engravable Diameter | 11 – 145 mm |
| Sphere Engravable Diameter | 25 – 130 mm |
